220H/320H Top Dressers & Row Mulchers
The Earth & Turf Model 220H & 320H features a compact sized frame and axle assembly. Making it the perfect package for vineyards, orchards, and row crops with narrow rows.
Measurements vary per machine, but 220H/320H top dressers and row mulchers will fit over rows and other will fit between narrow rows. With light material sides for compost, it will carry an impressive capacity of 1 & 2 cubic yards of topdressing (maximum load weight 2,700 lbs.). You will be able to spend less time loading and more time spreading with one of our 220H/320H compost spreaders.
The 220H & 320H models features hydraulic controls. Hydraulic controls do require hydraulic ports to power the spreader belt and beater mechanisms, but with that option comes next level control. This allows the operator to control material flow from start to stop in the operator position without dismounting the tractor. There are some important considerations with the hydraulic models of these spreaders; even though they offer more options and control, the pulling vehicle must have hydraulic ports, ideally in the back of the machine.
These hydraulic spreaders are not always “better” than the ground drive counterparts but do offer a few other features. A comparison chart shows the differences below:
|
Operation Description |
Ground Drive Model |
Hydraulic Counterpart |
|
Spread Multiple Materials |
Yes |
Yes |
|
Spread Thickness Control |
Yes, by metering gate |
Yes, by metering gate, ground speed, and hydraulic flow |
|
Topdress |
Yes, beater |
Yes, beater |
|
Lawn Level |
Yes, lightly |
Yes, heavy |
|
Sidedress |
No |
Yes, with side conveyor |
|
Machine Requirements |
20+ HP roughly |
20+ HP w/ hydraulic ports |
| Spread Thickness | ⅛” – ¼” |
Infinite Control |
220H & 320H Compost Spreader
Standard Features
Hydraulic Spreading Controls
Hydraulic Spreading Controls allow the operator to control material flow from start to stop in the operator position without dismounting the tractor
Hydraulic oil is passed from the main pump (on the pulling vehicle) through the line on the spreader. While flowing, it can be routed through a valve that controls the main belt, allowing users to restrict flow for slower application, or open it up, for faster belt movement, and a heavier application of material.
Sturdy Extra Wide Axle
All of our 220H and 320H models come with a wide axle allowing for thin and extra wide tires to be used allowing it versatility for any environment.
The 320v has a Tandem Walking Axle which stabilizes the spreader in uneven terrain and bumpy conditions to keep the load secure. All bumps are absorbed by both wheels reducing the jarring bumps to a fraction. See this feature in action.
220H/320H Spreader Specifications
| 220H | 320H | ||
|---|---|---|---|
| Capacity | 1 yard/2 yards with LMS | Capacity | 1 yard/2 yards with LMS |
| Box Width | 30.5 inches | Box Width | 30.5-40.5 inches |
| Total Height | 48.5 inches | Total Height | 48.5 inches |
| Total Width | 43″ Total Width | Total Width | 43″ Total Width |
| Spread Width | Up to 54 inches | Spread Width | Up to 73.5 inches |
| Spread System | Widespread Beater or Sidedressing Cross Conveyor | Spread System | Widespread Beater Sidedressing Cross Conveyor |
| Tire Size | 20.5 x 8.0-10 | Tire Size | 26.0 x 12-12 |
| Drive | Tractor / Tow-Vehicle Hydraulics | Drive | Tractor / Tow-Vehicle Hydraulics |
| Max Load Weight | 1,700 lbs. | Max Load Weight | 2,700 lbs. |
| Box Length | 76.5 inches | Box Length | 76.5 inches |
| Total Length | 122 inches | Total Length | 122 inches |
| Spread Thickness | Up to 0.25 inches | Spread Thickness | Up to 0.25 inches |
| Weight w/ Tires | 475.1 lbs | Weight w/ Tires | 760 lbs |
| Movement | Pull-Type | Movement | Pull-Type |
| Required Power | 24 hp/18 kw | Required Power | 24 hp/18 kw |
| Build | 12/16 ga. Bolted Steel | Build | 12/16 ga. Bolted Steel |
Popular Options and Setups
Of these spreaders, here are some popular setups below and practical information pertaining to each model

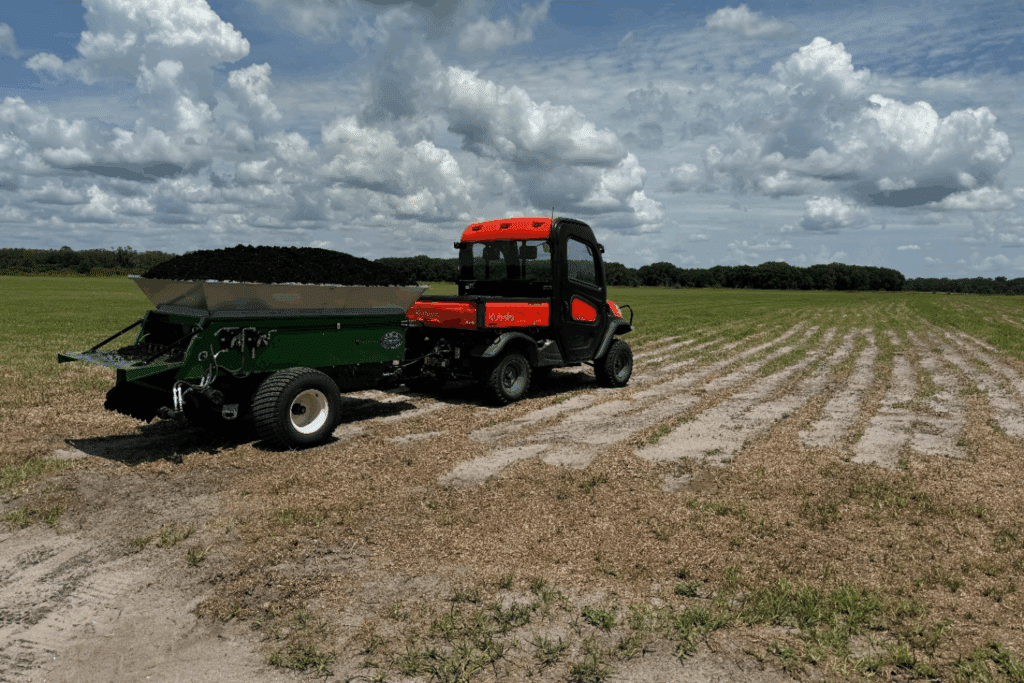

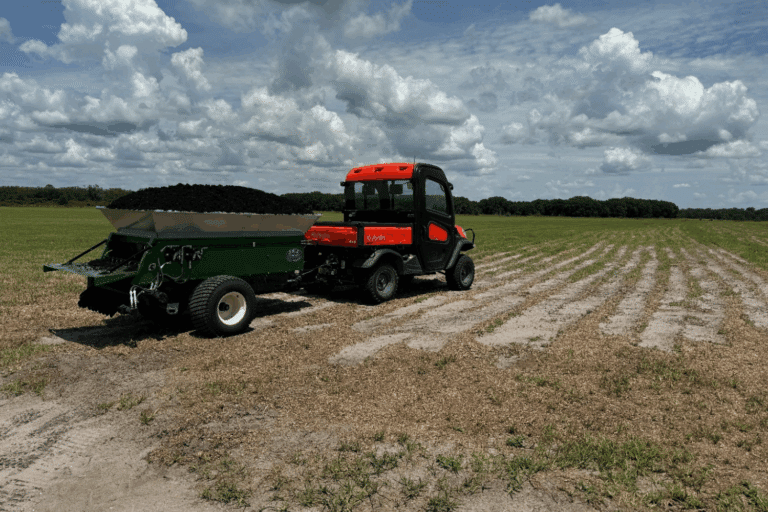

Basic Hydraulic 320
Usage: Standard Topdressing & Leveling (Sand, Topsoil, etc.)
Options: Standard Beater Expeller
Tires: Large Turf Tires – Low Compaction
Capacity: 1 Yard

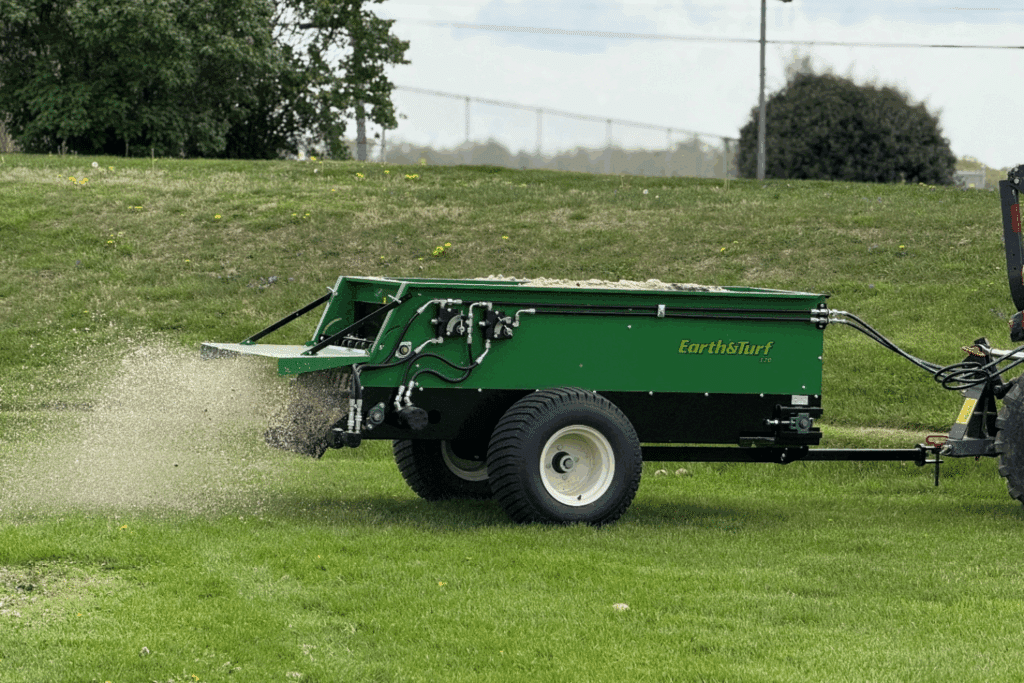

Basic Hydraulic 320
Usage: Standard/Heavy Soil Topdressing (Compost & Light Materials)
Options: LMS, Standard Beater Expeller
Tires: Large Turf Tires – Low Compaction
Capacity: 2 Yards
220H with Side Conveyor
Usage: Tight, Hilly Sidedressing
Options: LMS, 30” Side Conveyor, Lift Kit
Tires: Large Turf Tires – More stable and lower compaction
Capacity: 1 Yard

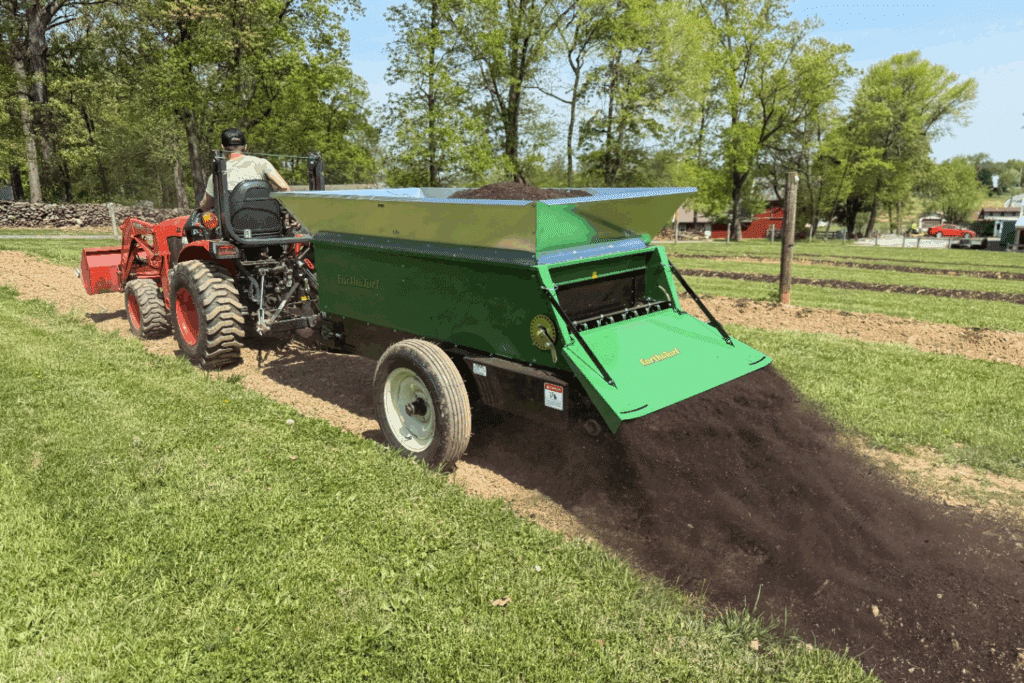

320H With Beater
Usage: Over-the-Row Mulching/Topdressing (Swaps for Sidedresser)
Options: LMS, Standard Beater Expeller, Hydraulic Quick Disconnect Point for Side Conveyor/Beater Swap
Tires: Large Rib Tires, Axle Hubs – Narrow Footprint
Capacity: 2 Yards

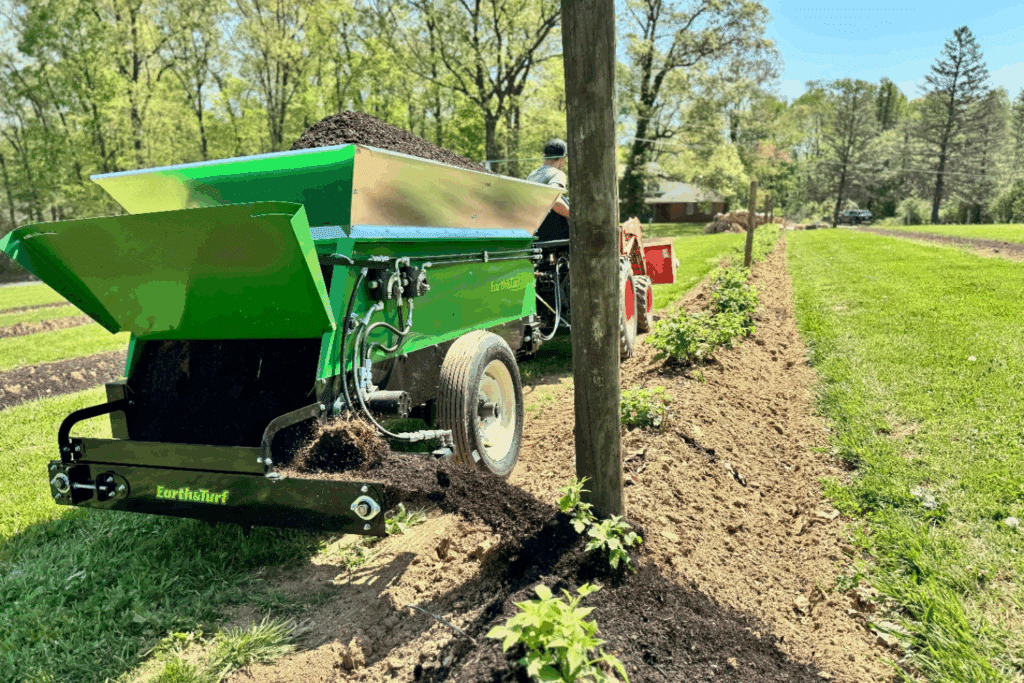

320H with Side Conveyor
Usage: Standard Sidedressing (Swaps for Over-the-Row)
Options: LMS, 40” Side Conveyor, Hydraulic Quick Disconnect Point for Side Conveyor/Beater Swap
Tires: Large Rib Tires – Narrow Footprint for Sidedressing or Over-the-Row Topdressing
Capacity: 2 Yards

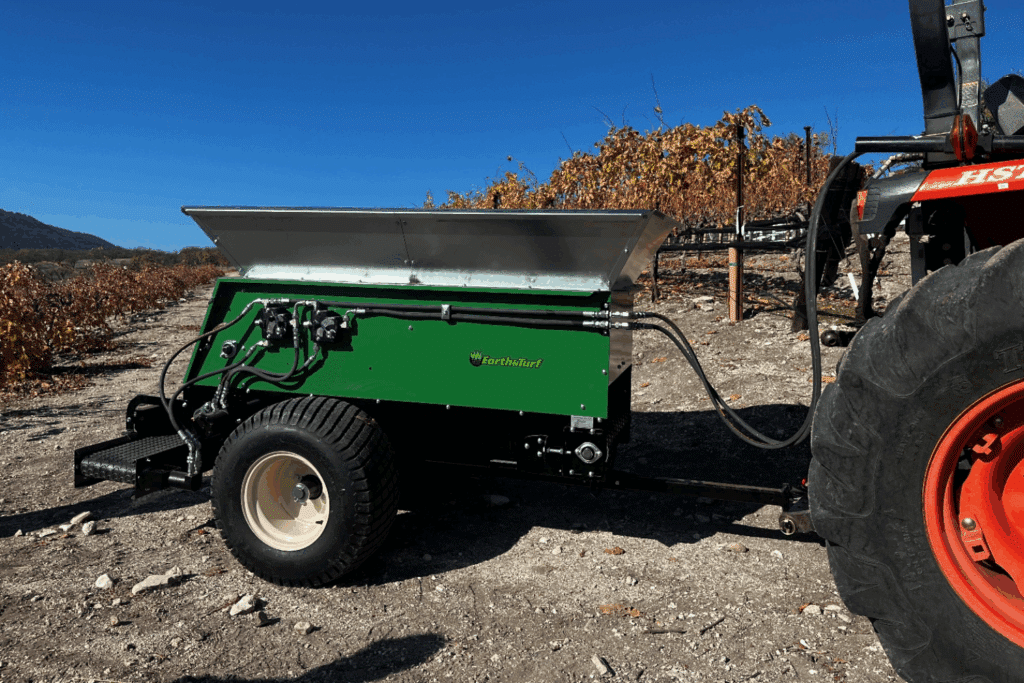

220H with Side Conveyor
Usage: Tight Side-dressing
Options: LMS, 30” Side Conveyor, Lift Kit
Tires: Large Rib Tires – Narrow Footprint
Capacity: 1 Yard

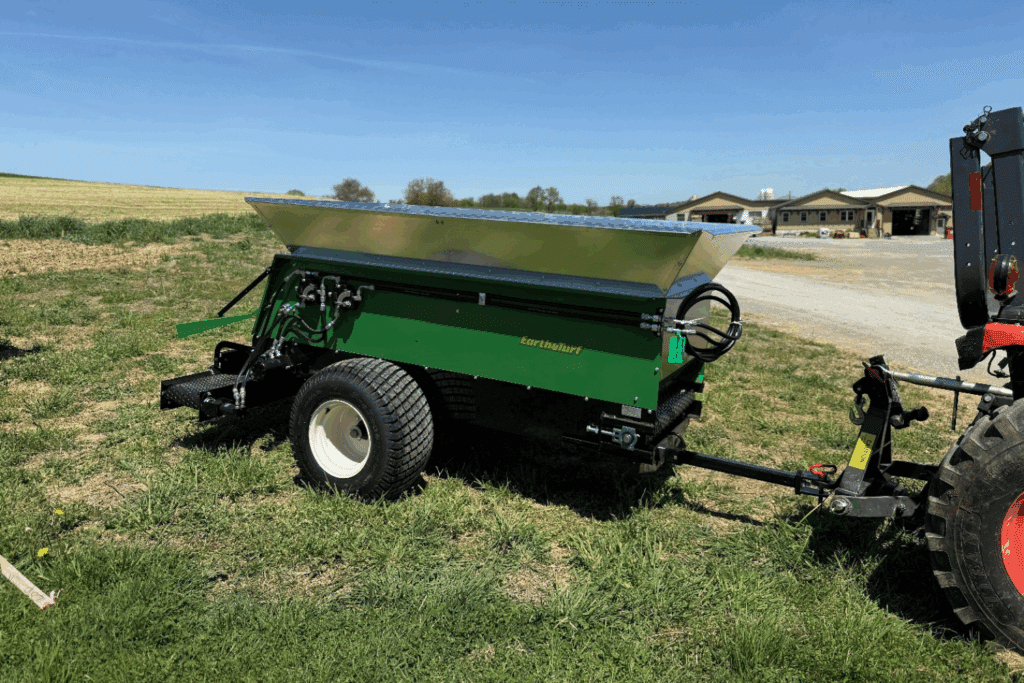

320H with Side Conveyor
Usage: Standard Side-dressing (Swaps for Over-the-Row)
Options: LMS, 40” Side Conveyor, Hydraulic Quick Disconnect Point for Side Conveyor/Beater Swap
Tires: Large Turf Tires – Wide Footprint for Stable Hillside Sidedressing
Capacity: 2 Yards

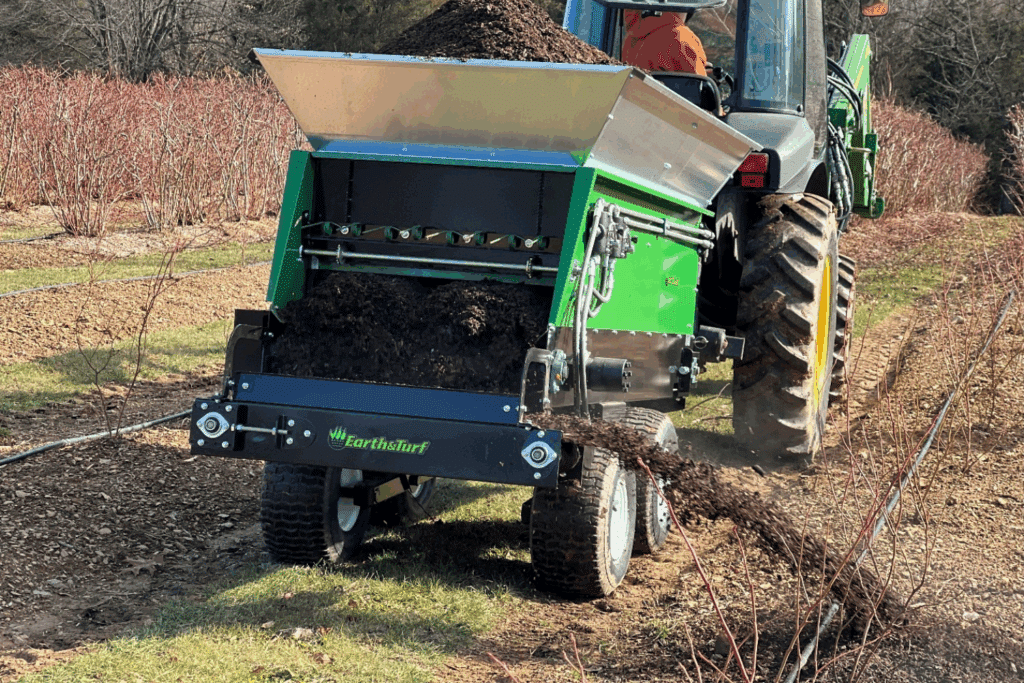

320V Standard with 30” Side Conveyor
Usage: Narrow Sidedressing, Relatively Flat Ground
Options: LMS
Tires: (4) Tucked Tandem Tires on Walking Axle – Narrow Footprint for Sidedressing Blueberries, Vineyards and More Tight Areas
Capacity: 2 Yards
320V Side Dresser Compost Spreader
Video Gallery
https://youtu.be/i8_RAPFge0U?si=SCSlA6itoLOzW4QM
https://youtu.be/tPaMBjBG-Uw
What it spreads:
Materials commonly spread by the 220H/320H Side Dresser include: compost, topdressing materials, mulch, and wood chips.
Powered by:
The 220H/320H Compost Spreader is built on the platform of the MultiSpread™ 220 and the MultiSpread™ 320 with the ground-drive upgraded to the hydraulic drive.
Who uses this machine:
The 220H/320H Side Dresser mulch spreader is used mainly by vineyards, orchards, blueberry patches, and Christmas Tree Farms to spread compost in and on narrow rows.
